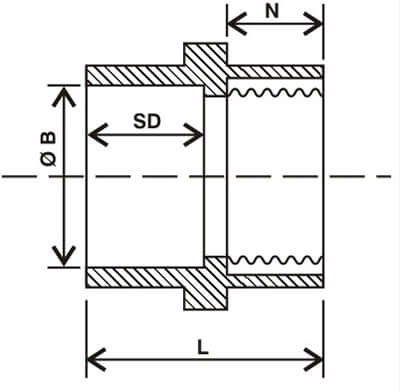

| Size (mm) |
Size (Inch) |
Pressure Rating (Kg/cm2) | L | B | S.D. | N | Material Code | Standard Pkg. |
| 20×20 | ½”×½” | 10 | 35.30 | 20.30 | 16.00 | 19.30 | 2113 | 500 |
| 25×25 | ¾”×¾” | 10 | 40.55 | 25.30 | 19.00 | 18.30 | 2115 | 300 |
| 25×20 | ¾”×½” | 10 | 38.50 | 25.30 | 19.00 | 16.00 | 2114 | 300 |
| 32×32 | 1"×1” | 10 | 47.00 | 32.40 | 22.00 | 19.68 | 2118 | 225 |
| 32×25 | 1”×¾” | 10 | 45.00 | 32.40 | 22.00 | 18.30 | 2117 | 200 |
| 32×20 | 1”×½” | 10 | 41.50 | 32.40 | 22.00 | 16.00 | 2116 | 200 |
| 40×40 | 1¼"×1¼" | 10 | 53.60 | 40.50 | 26.00 | 24.40 | 2119 | 100 |
| 50×50 | 1½”×1½” | 10 | 66.00 | 50.50 | 31.00 | 28.00 | 2120 | 75 |
| 63×50 | 2"×1½” | 6 | 65.00 | 63.50 | 38.00 | 24.50 | 2101 | 120 |
| 63×63 | 2"×2" | 6 | 80.00 | 63.50 | 38.00 | 34.00 | 2102 | 50 |
| 63×63 | 2"×2" | 10 | 69.00 | 63.50 | 38.00 | 24.00 | 2121 | 70 |
| 75×63 | 2½”×2" | 6 | 80.00 | 75.30 | 44.00 | 28.00 | 2103 | 32 |
| 75×75 | 2½”×2½” | 6 | 79.50 | 75.30 | 44.00 | 29.80 | 2104 | 40 |
| 75×75 | 2½"×2½" | 10 | 84.00 | 75.30 | 44.00 | 30.00 | 2122 | 40 |
| 90×63 | 3"×2" | 6 | 82.00 | 90.50 | 51.00 | 28.00 | 2105 | 40 |
| 90×75 | 3"×2½” | 6 | 98.00 | 90.50 | 51.00 | 43.00 | 2106 | 40 |
| 90×90 | 3"×3" | 6 | 99.50 | 90.50 | 51.00 | 42.30 | 2107 | 40 |
| 90×90 | 3"×3" | 10 | 97.00 | 90.50 | 51.00 | 38.00 | 2123 | 30 |
| 110×75 | 4"×2½" | 6 | 95.90 | 110.50 | 61.00 | 30.00 | 2108 | 30 |
| 110×90 | 4"×3" | 6 | 100.20 | 110.50 | 61.00 | 33.00 | 2109 | 30 |
| 110×110 | 4"×4" | 6 | 130.00 | 110.50 | 61.00 | 58.00 | 2110 | 15 |
| 110×110 | 4"×4" | 10 | 114.00 | 110.50 | 61.00 | 53.00 | 2124 | 15 |
| 140×140 | 5"×5" | 6 | 133.00 | 140.70 | 76.00 | 46.00 | 2111 | 12 |
| 160×160 | 6"×6" | 6 | 142.00 | 160.70 | 86.00 | 45.00 | 2112 | 9 |
| * All dimensions in "mm" |
Female-threaded adapters are commonly used in plumbing systems to connect pipes or fittings with male threads, facilitating transitions between different pipe materials or sizes.
Install a female-threaded adapter by wrapping the plumber's tape around the male threads, then securely screwing the adapter onto the male pipe threads using a wrench.
Yes, female-threaded adapters are versatile and suitable for both residential and commercial applications, offering reliable connections in various plumbing systems.
