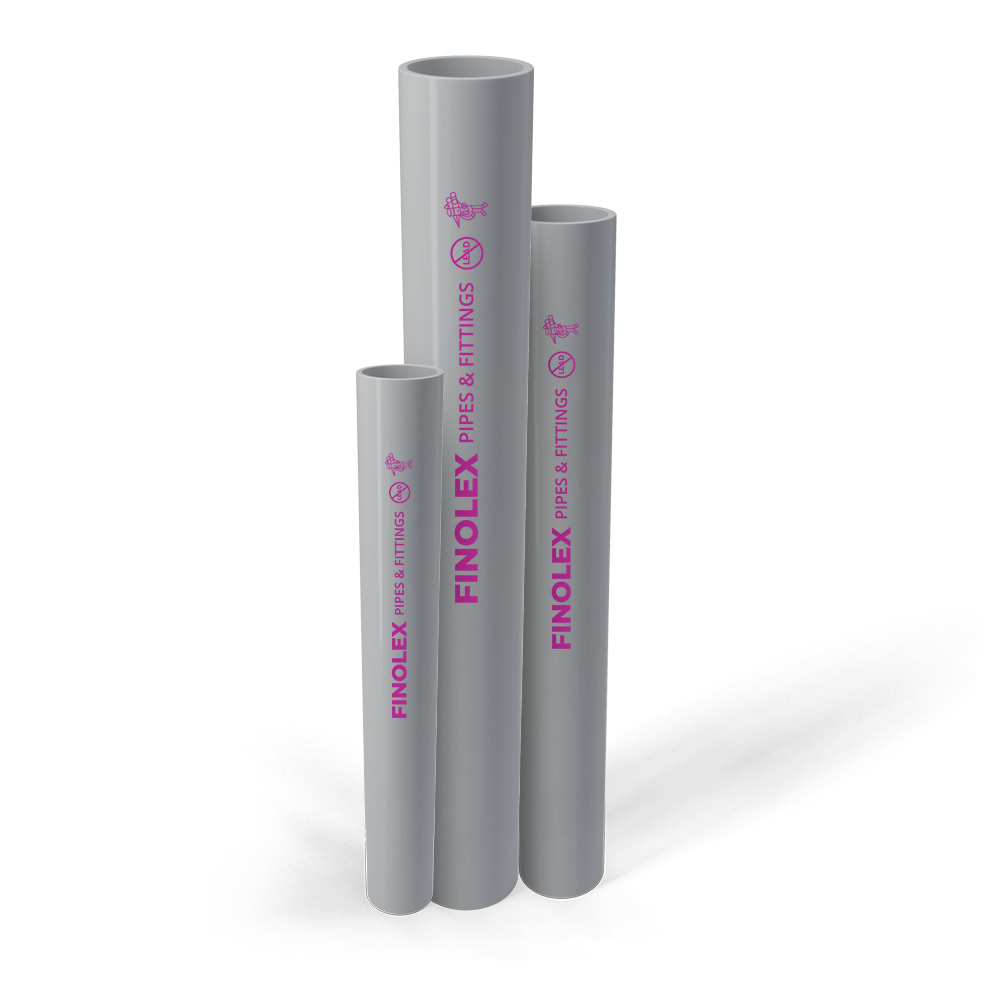

Heavy Pressure Plumbing Pipes – 15Kg
CONFORMING TO: IS 4985
Heavy Pressure Plumbing pipes are available in metric sizes ranging from 20 mm to 50 mm outside diameter in a standard length of 3 & 6 meters and are plain at both ends. These pipes are joined by using Finolex plumbing solvent cement. The pipes are in grey colour.
Dimensions of Heavy Pressure Pipe
| DIMENSIONS OF HEAVY PRESSURE PLUMBING PIPES | |||||||||
| Nominal Outside Diameter “D” in nominal | Mean Outside Diameter (mm) | Outside Diameter at any point (mm) | Wall Thickness “T” in mm | Material Code |
Std.Pipe Length |
||||
| (mm) | (inch) | Min | Max | Min | Max | Min | Max | meter | |
| 20 | ½" | 20.0 | 20.3 | 19.5 | 20.5 | 2.8 | 3.3 | 5401 | 6 |
| 25 | ¾" | 25.0 | 25.3 | 24.5 | 25.5 | 2.9 | 3.4 | 5402 | 6 |
| 32 | 1" | 32.0 | 32.3 | 31.5 | 32.5 | 3.4 | 3.9 | 5403 | 6 |
| 40 | 1¼" | 40.0 | 40.3 | 39.5 | 40.5 | 3.6 | 4.2 | 5404 | 3 |
| 40 | 1¼" | 40.0 | 40.3 | 39.5 | 40.5 | 3.6 | 4.2 | 5405 | 6 |
| 50 | 1½" | 50.0 | 50.3 | 49.4 | 50.6 | 3.7 | 4.3 | 5406 | 6 |
Batch Number logic:
| Year | Month | Day | M/c No. | Shift | Die No. / Location |
|---|---|---|---|---|---|
| XXXX | XX | XX | XXX | X | X/XX |
For example: The Batch Number of pipes produced on M/c no. 20 on 1st June 2025 in the 1st shift will be 202506010201 U
