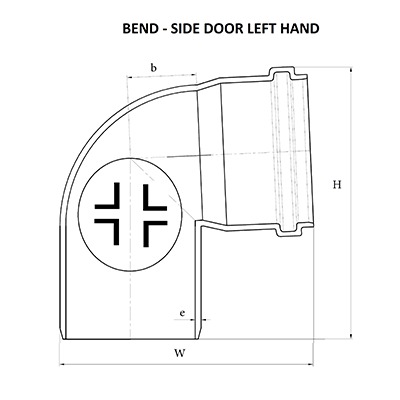

Dimensions of SWR Ringfit Bend – Side Door Left Hand
| Nominal Dia (mm) | Nominal Dia (Inch) | b | W | H | e (min) |
Material Code | Standard Pkg. |
| 110 | 4" | 52.60 | 185.50 | 202.40 | 3.30 | 7518 | 11 |
| * All dimensions in "mm" |
