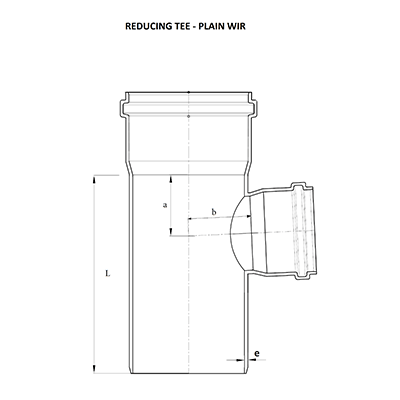

Dimensions of SWR Ringfit Reducing Tee - Plain
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 90x75 | 3"x2½" | 156.00 | 45.00 | 48.00 | 3.20 | 7538 | 18 |
| 110x75 | 4"x2½" | 182.00 | 59.00 | 59.00 | 3.20 | 7539 | 12 |
| 160x110 | 6"x4" | 240.00 | 83.00 | 83.00 | 4.00 | 7540 | 9 |
| * All dimensions in "mm" |
