SWR Ringfit Tee - Plain
As Per IS 14735
The SWR Tee Pipe - Plain fitting is specifically designed to connect a lateral soil/waste pipe at an angle of 87.5° to the main vertical pipe. This fitting ensures a secure and proper connection, enabling efficient flow and proper disposal of waste materials in plumbing and drainage systems.

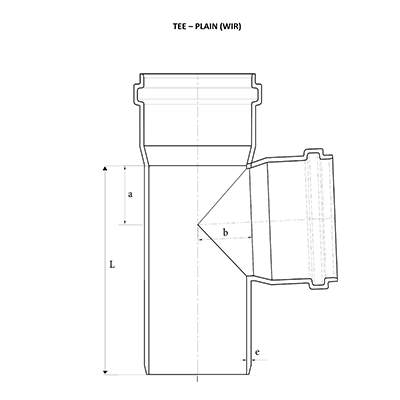

Dimensions of a SWR Ringfit Tee - Plain
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 134.00 | 38.00 | 39.00 | 3.20 | 7526 | 18 |
| 90 | 3" | 156.00 | 45.00 | 48.00 | 3.20 | 7527 | 18 |
| 110 | 4" | 183.00 | 57.00 | 57.00 | 3.20 | 7528 | 12 |
| 160 | 6" | 259.00 | 80.00 | 80.00 | 4.00 | 7529 | 8 |
| * All dimensions in "mm" |
