SWR Ringfit Single Y-Door
As Per IS 14735
The SWR Ringfit Pipe with a Single Y-Door is used to connect a branch soil/waste pipeline at a 45° angle to the main vertical pipeline. It features a convenient door for easy access and cleaning purposes, ensuring effective maintenance of the drainage system.

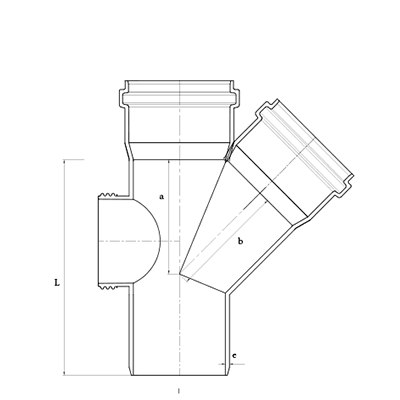

Dimensions of SWR Ringfit Single Y- Door
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 161.00 | 89.00 | 89.00 | 3.20 | 7566 | 12 |
| 90 | 3" | 190.00 | 102.00 | 102.00 | 3.20 | 7567 | 14 |
| 110 | 4" | 227.00 | 129.00 | 129.00 | 3.20 | 7568 | 8 |
| 160 | 6" | 328.00 | 195.00 | 195.00 | 4.00 | 7569 | 5 |
| * All dimensions in "mm" |
