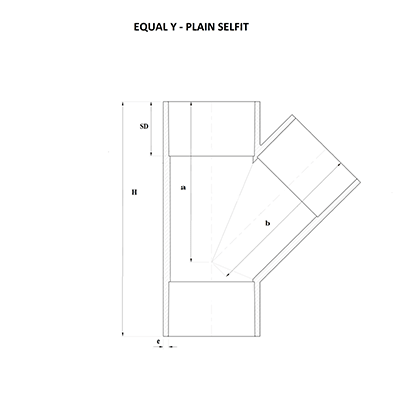

Dimensions of SWR Selfit Equal Y - Plain
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | a | b | SD | e (min) |
Material Code | Standard Pkg. |
| 50 | 1½" | 138.40 | 94.78 | 94.78 | 32.20 | 3.00 | 7673 | 50 |
| * All dimensions in "mm" | ||||||||
