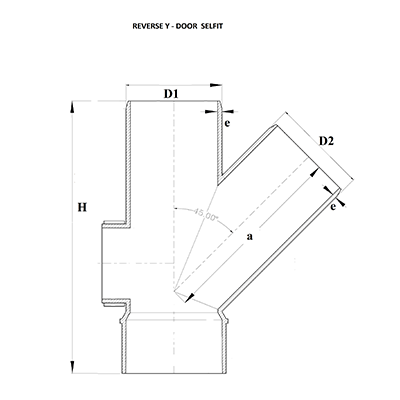

Dimensions of SWR Selfit REVERSE Y – DOOR
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | a | D1 | D2 | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 213.00 | 148.94 | 75.00 | 75.00 | 3.20 | 7684 | 13 |
| * All dimensions in "mm" | ||||||||
