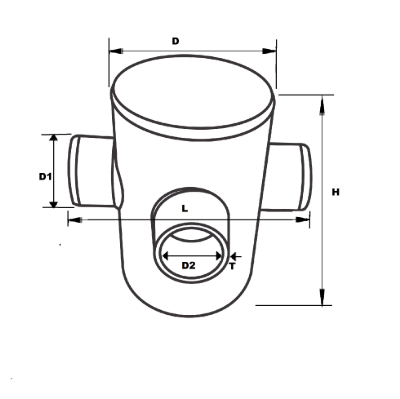

Dimensions of SWR Selfit Height Riser (6″)
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | D | D1 | D2 | D3 | L | T | T1 | Material Code | Standard Pkg. |
| 110 x (50/40) | 4" x (1½"/1¼") | 158.50 | 110.00 | 50.00 | 40.00 | - | 175.00 | 5.00 | - | 7690 | 12 |
| 110 x 75 x 50 | 4" x 2½" x 1½" | 158.50 | 110.00 | 50.00 | 75.00 | 110.00 | 175.00 | 3.00 | 3.00 | 7689 | 12 |
| * All dimensions in "mm" | |||||||||||
