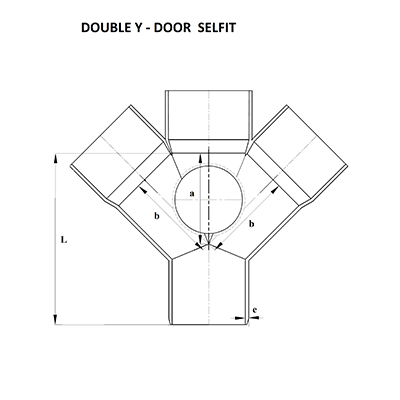

Dimensions of SWR Selfit Double Y - Door
| Nominal Dia (mm) |
Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 160 | 6" | 322.00 | 191.00 | 191.00 | 4.00 | 7678 | 4 |
| * All dimensions in "mm" | |||||||
