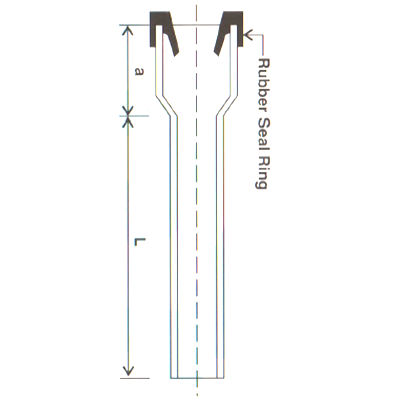

Dimensions of SWR Selfit WC Connector
| Nominal Dia (mm) |
Nominal Dia (Inch) | a | L | Material Code | Standard Pkg. |
| 110 (1.5 FT) | 4" | 90.00 | 345.00 | 7722 | 25 |
| 110 (2.0 FT) | 4" | 90.00 | 490.00 | 7723 | 20 |
| * All dimensions in "mm" |
