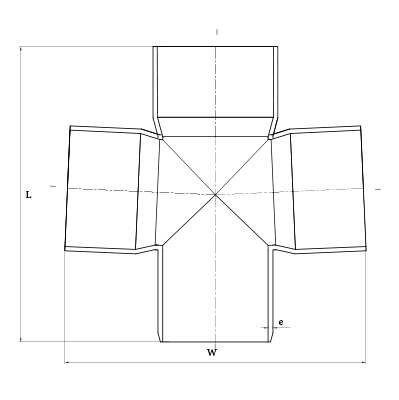

Dimensions of SWR Selfit Cross Tee
| Nominal Dia (mm) |
Nominal Dia (Inch) | L | W | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 191.50 | 193.00 | 3.20 | 7657 | 12 |
| 110 | 4" | 258.00 | 262.00 | 3.20 | 7658 | 10 |
| * All dimensions in "mm" |
