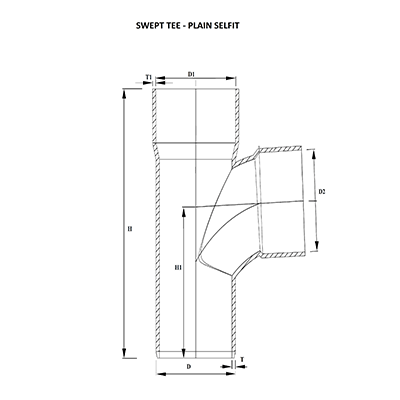

Dimensions of SWR Selfit Swept Tee - Plain
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | H1 | D | D1 | D2 | T | T1 | Material Code | Standard Pkg. |
| 75 | 2½" | 199.83 | 112.27 | 75.00 | 75.00 | 75.00 | 3.20 | 2.90 | 7659 | 19 |
| 110 | 4" | 266.80 | 156.40 | 110.00 | 110.00 | 110.00 | 3.30 | 2.90 | 7660 | 10 |
| * All dimensions in "mm" | ||||||||||
Related Products
-
COUPLER -
BEND 87.5° – PLAIN -
BEND 45° PLAIN -
BEND 45°- DOUBLE SOCKET -
BEND – DOUBLE SOCKET PLAIN -
BEND – DOUBLE SOCKET DOOR -
TEE – PLAIN -
TEE – DOOR -
TEE- DOUBLE SOCKET PLAIN -
TEE-DOUBLE SOCKET DOOR -
CROSS TEE – PLAIN -
CLEANING PIPE -
REDUCING BUSH -
REDUCING TEE – DOOR -
SWEPT TEE – DOOR -
SINGLE Y – PLAIN -
SINGLE Y – DOOR -
EQUAL Y – PLAIN -
EQUAL Y – DOOR -
DOUBLE Y – PLAIN -
DOUBLE Y – DOOR -
REDUCING Y – PLAIN -
REDUCING Y – DOOR -
REVERSE Y – PLAIN -
REVERSE Y – DOOR -
GULLY TRAP – SINGLE -
SQ. GULLY TRAP – WITH / W/O JALI -
HEIGHT RISER (6″) -
MULTI FLOOR TRAP – SQUARE JALI -
NAHANI TRAP - W/O JALI SINGLE PIECE -
NAHANI TRAP - JALI (Only JALI) -
Q – TRAP -
PIPE CLIP -
VENT COWL -
WC CONNECTOR -
WC CONNECTOR – BEND -
FLOOR TRAP -
SOCKET PLUG -
DOOR CAP -
LIP SEAL (FOR WC CONNECTOR / TRAP) -
P TRAP -
SWR Multi Floor Trap Without a Jali Fitting -
SWR Pipe - Straight Connector -
NAHANI TRAP – W/O JALI SINGLE PIECE -
MULTI FLOOR TRAP – 7″ HEIGHT -
MULTI FLOOR TRAP – WITH JALI -
SWR Bend 87.5° - Door -
SWR Pipe S-Trap -
SWR Selfit Pipe - Reducer Fitting -
SWR Selfit Reducing Tee - Plain -
MFT PARTITION PLATE WITH CAP -
PAN CONNECTOR - STRAIGHT -
PAN CONNECTOR - OFFSET-18MM (P32) -
BEND 45° - SINGLE SOCKET -
PAN CONNECTOR - OFFSET-40MM (P30) -
RED. BUSH (ECCENTRIC) -
NAHANI TRAP - W/O JALI SINGLE PIECE
-
Where are swept tee plain fittings commonly used?
The Finolex Swept Tee Plain fittings find common usage in sewage and drainage systems, particularly where smooth flow and minimal blockages are essential, such as in underground piping networks.
-
What are the advantages of using a swept tee plain fitting?
Advantages of swept tee plain fittings include reduced likelihood of clogging due to smooth transitions, improved flow efficiency, and ease of maintenance, enhancing overall system reliability and longevity.
-
Can swept tee plain fittings be used in both horizontal and vertical pipe runs?
Swept tee plain fittings are versatile and suitable for both horizontal and vertical pipe runs, offering flexibility in various plumbing and drainage applications while maintaining optimal flow characteristics.
