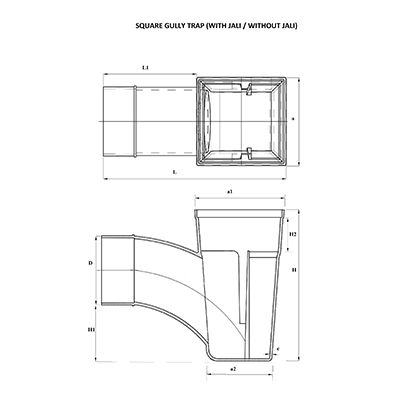

Dimensions of SWR Selfit Sq. Gully Trap - With & W/O Jail
| Nominal Dia (mm) |
Nominal Dia (Inch) | D | L | L1 | H | H1 | H2 | a | a1 | a2 | e | Material Code | Standard Pkg. |
| 110 (WITH JALI) |
4" | 110.00 | 285.50 | 145.50 | 240.00 | 89.00 | 53.70 | 140.00 | 140.00 | 102.93 | 4.00 | 7687 | 8 |
| 110 (WITHOUT JALI) |
4" | 110.00 | 285.50 | 145.50 | 240.00 | 89.00 | 53.70 | 140.00 | 140.00 | 102.93 | 4.00 | 7688 | 8 |
| * All dimensions in "mm" | |||||||||||||
