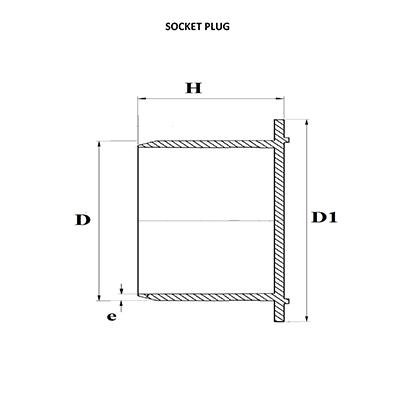

Dimensions of SWR Selfit Socket Plug
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | D | D1 | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 46.00 | 75.00 | 95.00 | 3.00 | 7726 | 100 |
| 110 | 4" | 63.00 | 110.00 | 130.00 | 3.00 | 7727 | 36 |
| * All dimensions in "mm" | |||||||
