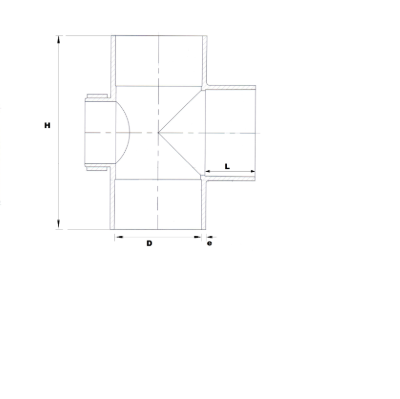

Dimensions of SWR Selfit Tee - Door Double Socket
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | D | L | e (Min) |
Material Code | Standard Pkg. |
| 63 | 2" | 137.00 | 63.00 | 36.00 | 2.90 | 7647 | 26 |
| 75 | 2½" | 157.00 | 75.00 | 40.00 | 2.90 | 7648 | 18 |
| 90 | 3" | 183.80 | 90.00 | 46.00 | 2.90 | 7649 | 18 |
| 110 | 4" | 208.00 | 110.00 | 48.00 | 2.90 | 7650 | 10 |
| * All dimensions in "mm" |
