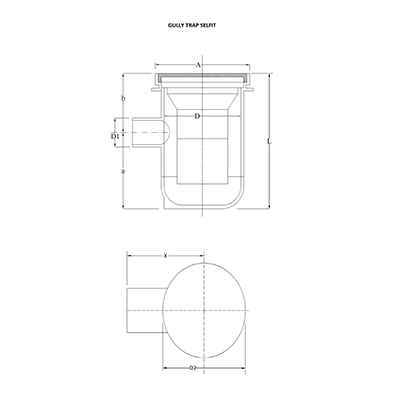

Dimensions of SWR Selfit GULLY TRAP – SINGLE
| Nominal Dia (mm) |
Nominal Dia (Inch) | L | A | X | D | D1 | D2 | a | b | Material Code | Standard Pkg. |
| 160 x 110 | 6" x 4" | 291.00 | 196.00 | 155.30 | 161.00 | 110.00 | 188.00 | 158.00 | 132.00 | 7685 | 7 |
* All dimensions in "mm"
