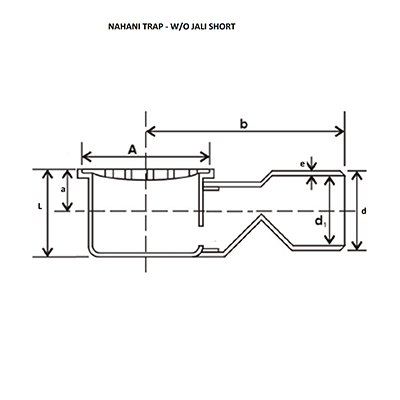

Dimensions of SWR Selfit Nahani Trap W/O - Jali - Single Piece
| Nominal Dia (mm) |
Nominal Dia (Inch) | A | L | a | b | d | d1 | e (min) |
Material Code | Standard Pkg. |
| 110 x 75 | 4" x 2½" | 124.00 | 85.50 | 45.20 | 205.00 | 75.00 | – | 2.50 | 7699 | 24 |
| 110 x 90 | 4" x 3" | 124.00 | 85.50 | 45.20 | 215.00 | – | 90.00 | 2.50 | 7700 | 24 |
| 110 x 110 | 4" x 4" | 124.00 | 85.50 | 45.20 | 228.00 | – | 110.00 | 3.10 | 7701 | 24 |
