SWR Selfit Multi Floor Trap – 7″ Height
The SWR 7-inch Multi-floor Trap Fitting is a versatile solution for effectively draining multiple sources such as bathrooms, washbasins, washing machines, and bathtubs. This fitting is equipped with three additional inlets that have socket plugs, allowing you to open them as needed for optimal drainage. With this fitting, you can prevent unpleasant odours while ensuring a smooth and efficient drainage system.

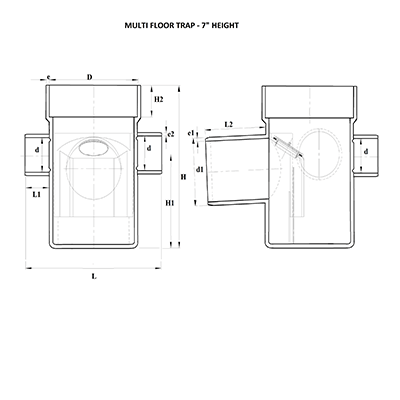

Dimensions of SWR Selfit Multi Floor Trap – 7″ Height
| Nominal Dia (mm) |
Nominal Dia (Inch) | L | L1 | L2 | H | H1 | H2 | D | d | d1 | e | e1 | e2 | Material Code | Standard Pkg. |
| 110 x 75 | 4" X 2½" | 180.00 | 30.00 | 75.00 | 180.00 | 103.70 | 35.00 | 110.00 | 40.00 | 75.00 | 4.00 | 4.00 | 3.50 | 7696 | 12 |
| * All dimensions in "mm" | |||||||||||||||
Related Products
-
COUPLER -
BEND 87.5° – PLAIN -
BEND 45° PLAIN -
BEND 45°- DOUBLE SOCKET -
BEND – DOUBLE SOCKET PLAIN -
BEND – DOUBLE SOCKET DOOR -
TEE – PLAIN -
TEE – DOOR -
TEE- DOUBLE SOCKET PLAIN -
TEE-DOUBLE SOCKET DOOR -
CROSS TEE – PLAIN -
CLEANING PIPE -
REDUCING BUSH -
REDUCING TEE – DOOR -
SWEPT TEE – DOOR -
SINGLE Y – PLAIN -
SINGLE Y – DOOR -
EQUAL Y – PLAIN -
EQUAL Y – DOOR -
DOUBLE Y – PLAIN -
DOUBLE Y – DOOR -
REDUCING Y – PLAIN -
REDUCING Y – DOOR -
REVERSE Y – PLAIN -
REVERSE Y – DOOR -
GULLY TRAP – SINGLE -
SQ. GULLY TRAP – WITH / W/O JALI -
HEIGHT RISER (6″) -
MULTI FLOOR TRAP – SQUARE JALI -
NAHANI TRAP - W/O JALI SINGLE PIECE -
NAHANI TRAP - JALI (Only JALI) -
Q – TRAP -
PIPE CLIP -
VENT COWL -
WC CONNECTOR -
WC CONNECTOR – BEND -
FLOOR TRAP -
SOCKET PLUG -
DOOR CAP -
LIP SEAL (FOR WC CONNECTOR / TRAP) -
P TRAP -
SWR Multi Floor Trap Without a Jali Fitting -
SWR Pipe - Straight Connector -
NAHANI TRAP – W/O JALI SINGLE PIECE -
MULTI FLOOR TRAP – WITH JALI -
SWR Bend 87.5° - Door -
SWR Pipe S-Trap -
SWR Selfit Pipe - Reducer Fitting -
SWR Selfit Reducing Tee - Plain -
MFT PARTITION PLATE WITH CAP -
PAN CONNECTOR - STRAIGHT -
SWEPT TEE – PLAIN -
PAN CONNECTOR - OFFSET-18MM (P32) -
BEND 45° - SINGLE SOCKET -
PAN CONNECTOR - OFFSET-40MM (P30) -
RED. BUSH (ECCENTRIC) -
NAHANI TRAP - W/O JALI SINGLE PIECE
-
What is the minimum depth of a floor trap?
The minimum depth of a multi-floor trap is usually around 50 to 75 millimetres, ensuring proper drainage while maintaining a secure and functional design.
-
How to install a 7-inch multi-floor trap for SWR pipe?
To install a 7-inch multi-floor trap for SWR pipe, cut the pipe, fix the trap in position, and secure it with appropriate couplings, ensuring a tight and leak-free connection.
