SWR Selfit Reducing Tee - Plain
As Per IS 14735
The SWR Selfit Reducing Tee Fitting is a reliable and durable solution for connecting a reducing soil/waste pipeline to the main pipeline. With its specific design, it allows for a smooth connection at an angle of 87.5°, ensuring optimal water flow and preventing any potential leaks or blockages in your plumbing system.

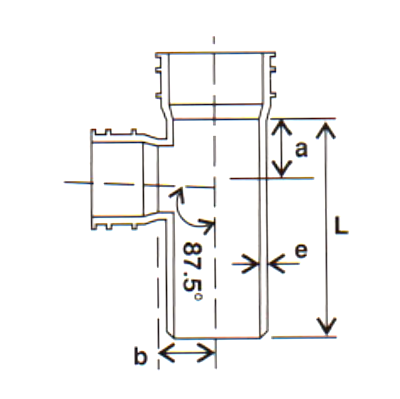

Dimensions of SWR Selfit Reducing Tee - Plain
| Nominal Dia (mm) |
Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 90 x 75 | 3" x 2½" | 169.00 | 46.00 | 46.00 | 3.20 | 7651 | 16 |
| 110 x 75 | 4" x 2½" | 178.00 | 59.00 | 59.00 | 3.20 | 7652 | 18 |
| 160 x 110 | 6" x 4" | 257.00 | 80.00 | 80.00 | 4.00 | 7653 | 11 |
| * All dimensions in "mm" | |||||||
